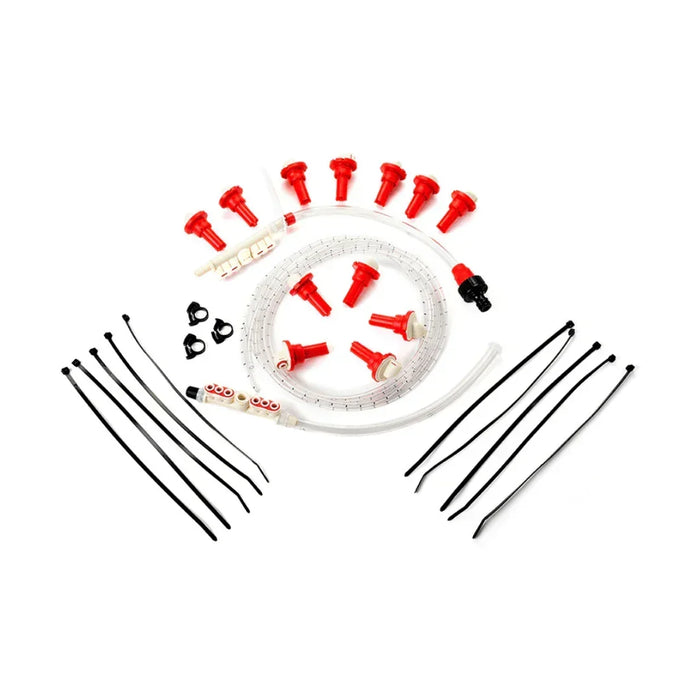

9-Cell Water Injector Spider Battery Watering System

SKU: INJ-LP9

The 9-Cell Water Injector Spider Battery Watering System is a single-point watering solution designed to simplify maintenance for 18V industrial lead-acid batteries. Using patented injector valve technology and a low-profile spider-style configuration, this system helps deliver fast, accurate battery watering while reducing maintenance time and improving battery performance.

Designed for industrial battery applications, the Injector Spider System allows all battery cells to be watered simultaneously while automatically maintaining the proper electrolyte level in each cell.

Injector Repair Parts: Battery Watering System Repair Parts – powRparts

Key Features

Patented Automatic Shut-Off Valves

Injector valves automatically stop water flow when the proper electrolyte level is reached, helping eliminate overfilling and ensuring consistent battery maintenance.

Fast Battery Watering

The system can typically water an entire battery in 15 to 30 seconds, helping reduce maintenance downtime and labor requirements.

Spider-Style Low Profile Design

The compact, low-profile design fits beneath battery covers and inside tight battery compartments, making it ideal for industrial equipment applications.

Single-Point Watering

A centralized watering connection allows all nine battery cells to be watered simultaneously, eliminating manual cell-by-cell filling.

Durable Industrial Construction

Built with UV-resistant polyethylene tubing and rugged injector valve materials designed for demanding industrial environments.

Optional Visual Flow Verification

Optional flow indicators can provide visual confirmation that water is moving through the system during operation.

What It Is

The 9-Cell Water Injector Spider System is a battery watering solution for 18V industrial lead-acid batteries. Water is distributed through a centralized layout that supplies all battery cells simultaneously.

Each battery cell is equipped with an injector valve that automatically controls the water level. Once the correct electrolyte level is reached, water flow stops automatically without operator intervention.

The system helps eliminate the need to remove vent caps or manually inspect individual cells during routine watering procedures.

Choose This Watering System When

• You need a watering system for an 18V (9-cell) industrial lead-acid battery.
• You want faster battery maintenance.
• You want automatic shut-off protection against overfilling.
• You need a low-profile watering solution.
• You operate forklifts, warehouse equipment, or industrial battery-powered equipment.
• You want to reduce labor associated with routine battery maintenance.

Consider Another Option When

• Your battery requires a different voltage or cell-count configuration.
• You need replacement components instead of a complete watering system.
• Your application requires a different battery watering platform.

Key Benefits

Improves Watering Accuracy

Patented injector valves automatically maintain proper electrolyte levels across all battery cells.

Reduces Maintenance Time

Most batteries can be watered within 15 to 30 seconds, reducing maintenance downtime.

Supports Battery Performance

Proper electrolyte levels help support battery performance and service life.

Cleaner and Safer Battery Maintenance

The closed watering design helps reduce acid exposure, spills, and unnecessary handling of battery cells.

Simplified Watering Process

One connection point allows operators to water the entire battery without removing individual caps.

Quick Specifications

Compatibility and Setup

The Injector Spider Watering System connects to a compatible water supply using the INJ-CP coupling and is designed to work with:

• INJ-HCT Watering Cart
• INJ-MINI Mobile Watering Cart
• INJ-607 Fill Link
• INJ-DF DirectFill Hose Assembly

Once connected, water flows through the tubing network and into all battery cells simultaneously. Injector valves automatically shut off when proper water levels are reached.

Frequently Asked Questions

Does the system automatically stop filling?

Yes. Each injector valve automatically shuts off when the proper electrolyte level is reached.

How long does it take to water a battery?

Typical watering times range from 15 to 30 seconds per battery.

Do I need to remove battery caps?

No. The system waters through a centralized connection and eliminates manual cell-by-cell filling.

What batteries is this designed for?

This version is designed for 18V industrial lead-acid batteries with nine cells.

What water supply equipment can I use?

The system is compatible with approved Injector water supply tools including watering carts, Fill Links, and DirectFill assemblies.

Common Applications

• Electric Forklifts
• Material Handling Equipment
• Warehouse Operations
• Distribution Centers
• Industrial Battery Rooms
• Manufacturing Facilities
• Motive Power Equipment

Why Choose the Injector Spider Watering System?

• Fast single-point watering
• Automatic shut-off protection
• Low-profile spider design
• Reduced battery maintenance labor
• Improved watering consistency
• Durable industrial construction
• Supports battery performance and reliability
