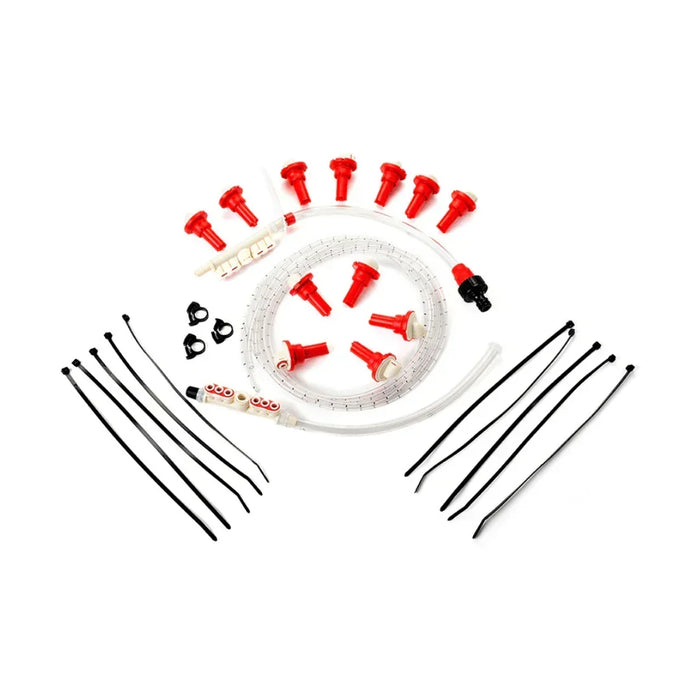

40V Injector Spider Battery Watering System

SKU: INJ-LP20

The 40V Spider Battery Watering System is a single-point watering solution designed to simplify maintenance for 40V industrial lead-acid batteries. Using patented injector valve technology and a low-profile spider-style manifold configuration, this system delivers fast, accurate battery watering while reducing maintenance labor and helping maintain proper battery performance.

Designed for high-throughput industrial environments, the Injector Spider System waters all battery cells simultaneously and can fill an entire battery in 15 seconds or less when operated at the recommended pressure range.

Injector Repair Parts: Battery Watering System Repair Parts – powRparts

Key Features

Patented Automatic Shut-Off Valves

Each injector valve automatically stops water flow when the correct electrolyte level is reached, helping eliminate overfilling while ensuring consistent battery maintenance.

Ultra-Fast Battery Watering

The Spider System can fill an entire battery in 15 seconds or less, making it one of the fastest battery watering solutions available for industrial lead-acid batteries.

Spider Manifold Design

A centralized manifold distributes water evenly to all battery cells through a spider-style tubing layout, helping simplify installation and reduce clutter.

Low-Profile Configuration

Designed to fit easily beneath battery covers and inside tight battery compartments commonly found in industrial equipment.

Rugged Industrial Construction

Built from durable materials designed to withstand demanding industrial environments and daily battery maintenance routines.

Optional Visual Flow Indicator

An optional flow indicator provides real-time confirmation that water is moving through the system during operation.

What It Is

The 40V Spider Battery Watering System is a battery watering solution for 40V industrial lead-acid batteries with twenty cells. Water is supplied through a centralized manifold that distributes water evenly to every battery cell simultaneously.

Each cell is equipped with a patented injector valve that automatically controls water levels. Once the correct electrolyte level is reached, water flow stops automatically, helping ensure safe and consistent filling.

The closed-loop design eliminates the need to remove vent caps or manually monitor individual cells during routine battery watering.

Choose This Watering System When

• You need a watering system for a 40V (20-cell) industrial lead-acid battery.
• You want extremely fast battery watering cycles.
• You need automatic shut-off protection against overfilling.
• You want a low-profile watering solution for confined battery compartments.
• You manage forklift fleets, warehouse equipment, or industrial battery-powered machinery.
• You want to reduce battery maintenance labor and downtime.

Consider Another Option When

• Your battery requires a different voltage or cell-count configuration.
• You need individual replacement components instead of a complete watering system.
• Your application requires a different battery watering platform.

Key Benefits

Improves Watering Accuracy

Patented injector valves automatically maintain proper electrolyte levels across all battery cells.

Reduces Maintenance Time

Complete battery watering can be completed in 15 seconds or less when supplied with the recommended pressure.

Supports Battery Performance

Maintaining proper water levels helps support battery performance, longevity, and reliability.

Cleaner and Safer Maintenance

The closed watering design helps reduce acid exposure, spills, and manual handling of battery cells.

Simplified Routine Service

One connection point allows operators to water the entire battery quickly with minimal supervision.

Quick Specifications

Compatibility and Setup

The Injector Spider Watering System connects to a compatible water supply using the INJ-CP coupling and is designed to work with:

• INJ-HCT HydroMax Watering Cart
• INJ-MINI Mobile Watering Cart
• INJ-607 Fill Link
• INJ-DF DirectFill Hose Assembly

Once connected, water flows through the central spider manifold and into all twenty battery cells simultaneously. The injector valves automatically shut off when proper water levels are reached.

Frequently Asked Questions

Does the system automatically stop filling?

Yes. Each injector valve automatically shuts off when the proper electrolyte level is reached.

How long does it take to water a battery?

The Spider System can fill an entire battery in 15 seconds or less when operating at the recommended pressure range.

Do I need to remove battery caps?

No. The system uses a closed-loop watering design that eliminates manual cell-by-cell watering.

What batteries is this designed for?

This version is designed for 40V industrial lead-acid batteries with twenty cells.

What water supply equipment can I use?

The system is compatible with HydroMax watering carts, mobile watering carts, Fill Links, and DirectFill hose assemblies.

Common Applications

• Electric Forklifts
• Material Handling Equipment
• Warehouse Operations
• Distribution Centers
• Industrial Battery Rooms
• Manufacturing Facilities
• Multi-Shift Operations
• Motive Power Equipment

Why Choose the Injector Spider Watering System?

• Ultra-fast 15-second watering
• Automatic shut-off protection
• Spider-style manifold configuration
• Reduced battery maintenance labor
• Improved watering consistency
• Low-profile installation design
• Durable industrial construction
• Supports battery performance and reliability
